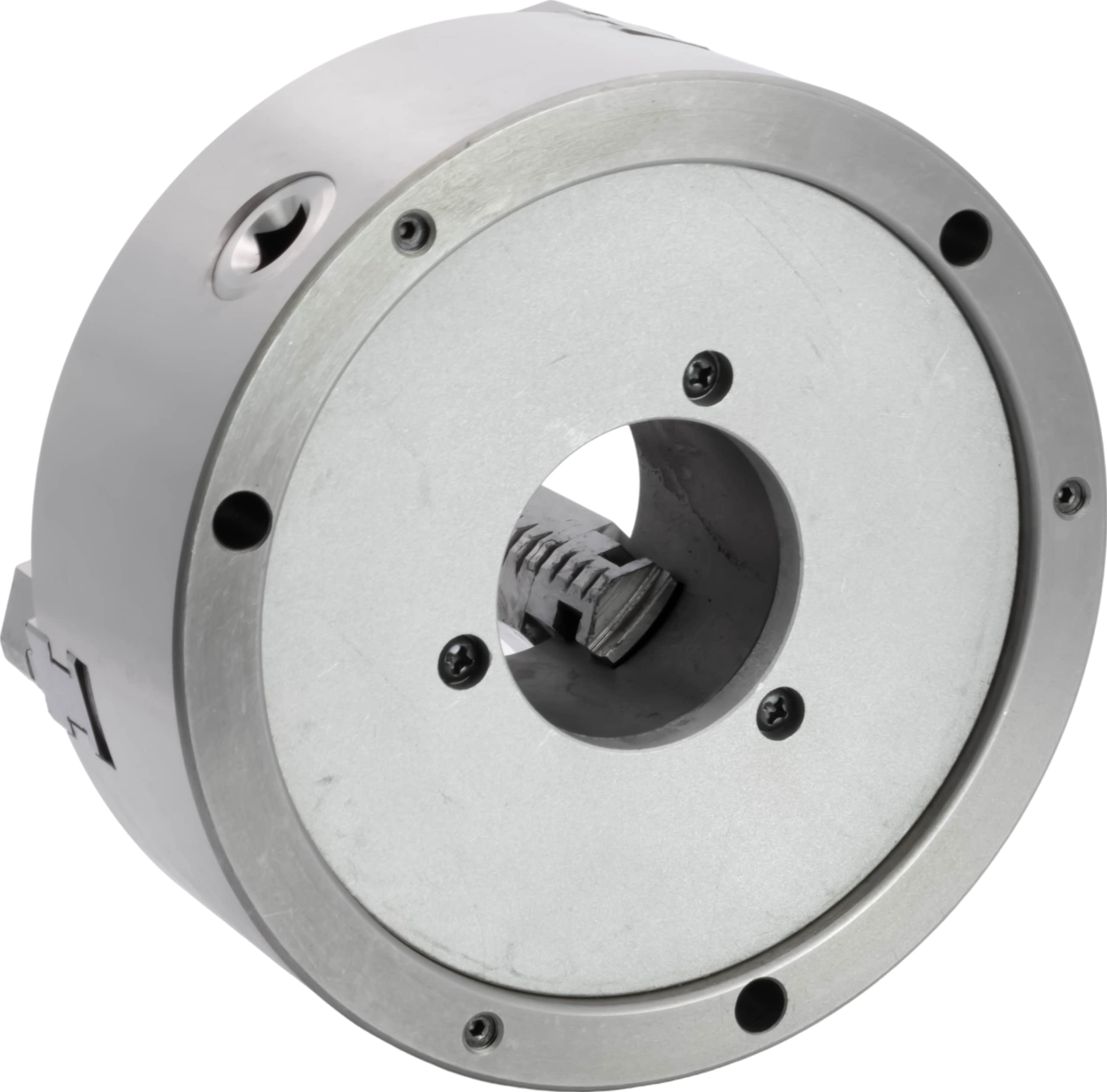

CME 8" 3-Jaw Self-Centering (Scroll) Lathe Chuck, Front Mount, Two-Piece Reversible Jaws
Details
- BrandCME Tools
- MaterialAlloy Steel
- Item Diameter2E+2
- Item Weight39 Pounds
- Compatible DevicesLathe
Description
⚙️ Master your craft with precision and power — don’t get left behind!
- SEAMLESS SELF CENTERING ACTION - Independent, self-centering lock type guarantees consistent, accurate workpiece alignment every time.

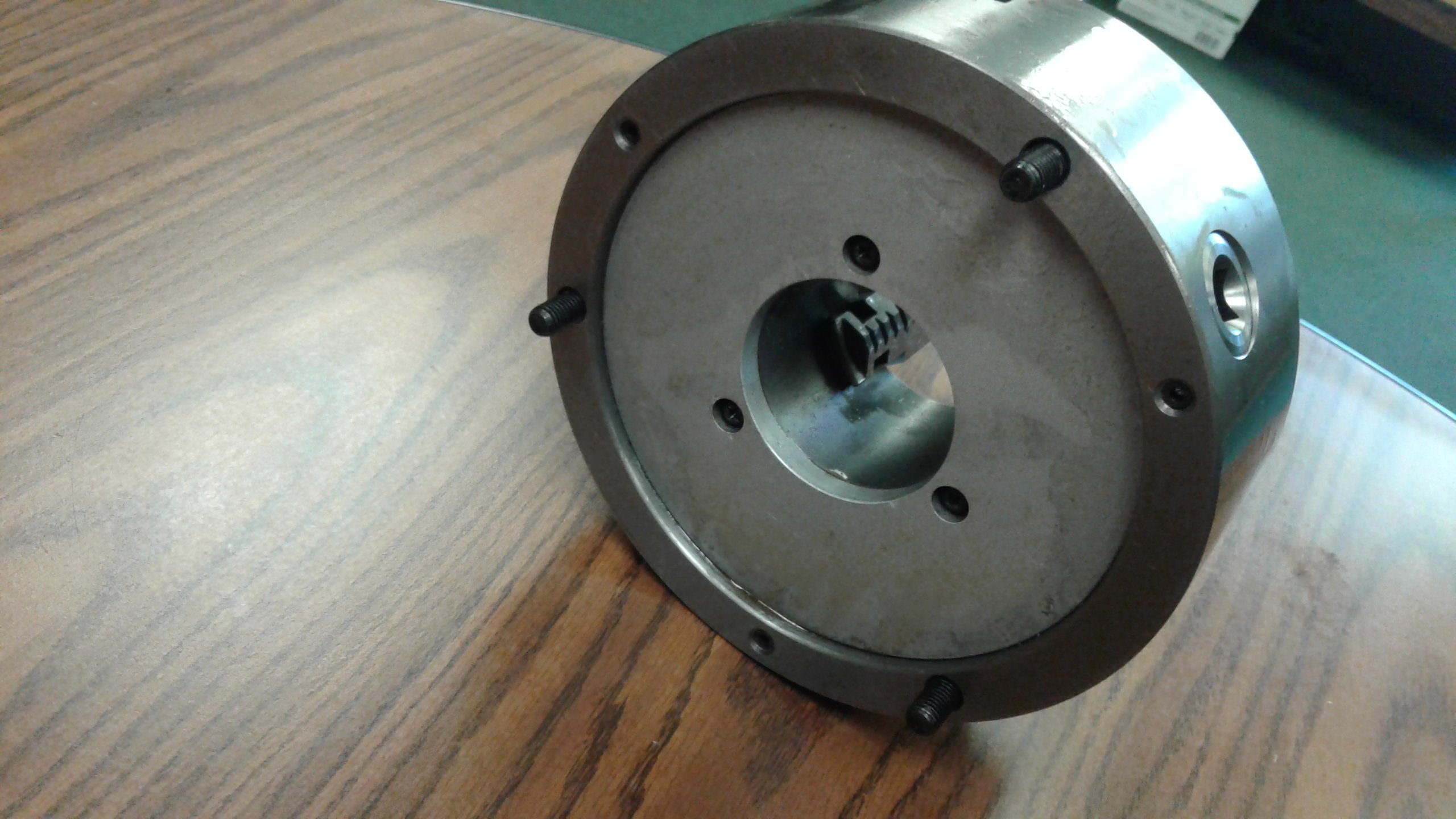

- READY FOR PROFESSIONAL INTEGRATION - Plain back design with optional CME fully machined backing plates for effortless mounting and upgrade flexibility.
- VERSATILE TWO PIECE REVERSIBLE JAWS - Top and bottom jaw pieces allow for extended lifespan and adaptable clamping options.
- UNMATCHED DURABILITY WITH HARDENED STEEL - Quench-hardened steel mechanisms deliver toughness that withstands heavy-duty machining demands.
- PRECISION ENGINEERING FOR ULTIMATE CONTROL - 8" body diameter with a 2.56" through-hole ensures compatibility with a wide range of lathe spindles.
The CME 8" 3-Jaw Self-Centering Lathe Chuck features a robust 8-inch body with two-piece reversible jaws made from quench-hardened steel for superior durability. Designed with an American Standard Tongue and Groove style and ISO3442 compliance, it offers a clamping range from 0.1575" to 3.3465" internally and up to 7.874" externally. Its self-centering mechanism ensures precise alignment, while the plain back allows for custom mounting with CME backing plates, making it a versatile and reliable choice for professional machinists.
Specifications
| Thread Size | M10 |
| Capacity | 2E+2 Millimeters |

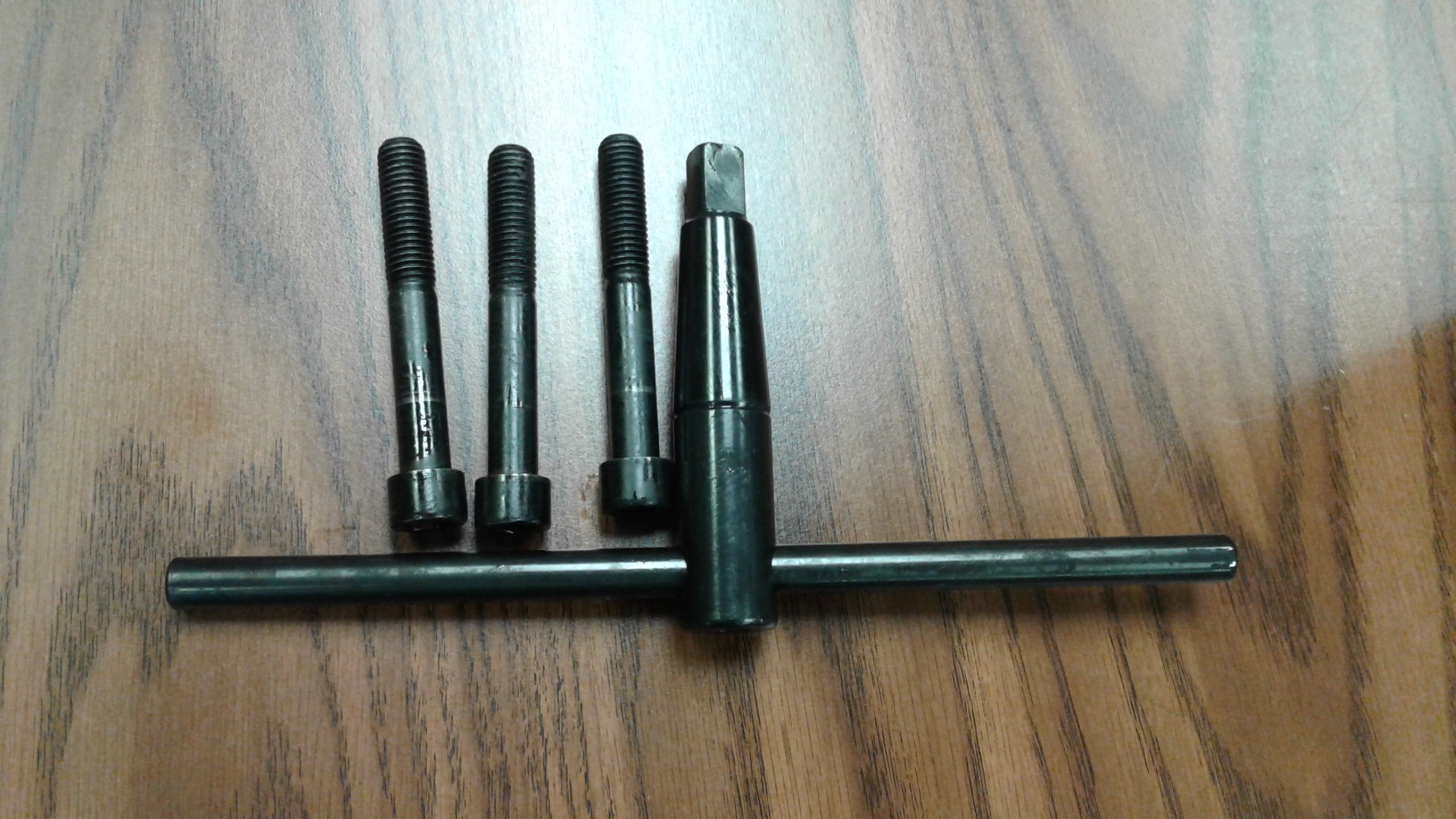

| Included Components | Lathe Chuck Key, Mounting Bolt (3) |
| Lock Type | Independent, Self Centering |
| Manufacturer | CME Tools |
| Handle Type | keyed |
| Part Number | 0803F0-FM |
| Item Weight | 39 pounds |
| Is Discontinued By Manufacturer | No |
| Size | 8" 3-Jaw |
| Item Package Quantity | 1 |
| Cutting Diameter | 2E+2 Millimeters |
| Batteries Included? | No |
| Batteries Required? | No |
Reviews
A**R
Great Quality
Great Chuck. This one is mounted on a rotary table in order to mill interlocking lugs for various machine parts. Chuck up the workpiece, center the chuck & rotary table under the mill head, then use the mill cross feed to create lugs on the top end of the workpiece by indexing the rotary table as required.
J**Y
fits a sheldon lathe from the 1950*s
made my old lathe come back to life
B**A
May need some additional work
When opening the box, the chuck looked great with regards to the machined exterior surfaces. When opening and closing the jaws with the Tee Handle, the Tee Handle would bind frequently and would not turn smoothly. Based on previous reviews, I opened the chuck up and found the machining on the pinions and scroll teeth very crude requiring dressing and polishing. Once that was done, it operated smoothly.
G**S
6” 3 jaw chuck.
The chuck is well made and works well on my southbend heavy 10 lathe. I would recommend it.
B**R
Clean the chuck!
When I got this chuck it was very hard to adjust, so I took it apart and found that it was crammed with grease and who knows what. I cleaned and oiled it and it improved about 90%. The chuck is nicely finished on the outside, but the internal machining is not as good, and there are still some hard spots in the mechanism, which I think can be improved with some lapping of the pinions to the scroll. I mounted the chuck on my rotary table and it shows repeatable TIR OF .002", which is very good for a 3 jaw, especially from China. The internal quality is not up to BIson standards, but then you are not paying $600 for it either. I think this chuck is a very good value for the money.
D**.
FANTASTIC FOR MINI LATHE VM210V MACHINE
WORKS GREAT. FOR MY MACHINE I NEEDED LONGER BOLTS FOR THIS .
B**Y
Parts
As listed
J**
Pretty good chuck for the money
The chuck arrived a week early and I like that. Seems to work good and run true. Decent for inexpensive 3-jaw chuck.
