What is this?
It is widely used in the air guide mechanism and shaking head mechanism of electric fans, heaters, heaters, small sun angles, various display racks, handicrafts, lighting fixtures, toys and other appliances, as well as the air guide motors of various types of air conditioners and the turntables of microwave ovens motor. Widely used in Christmas trees, rotating lights, electric tables, electric shelves, dishwashers, control appliances, etc.

What will I get?

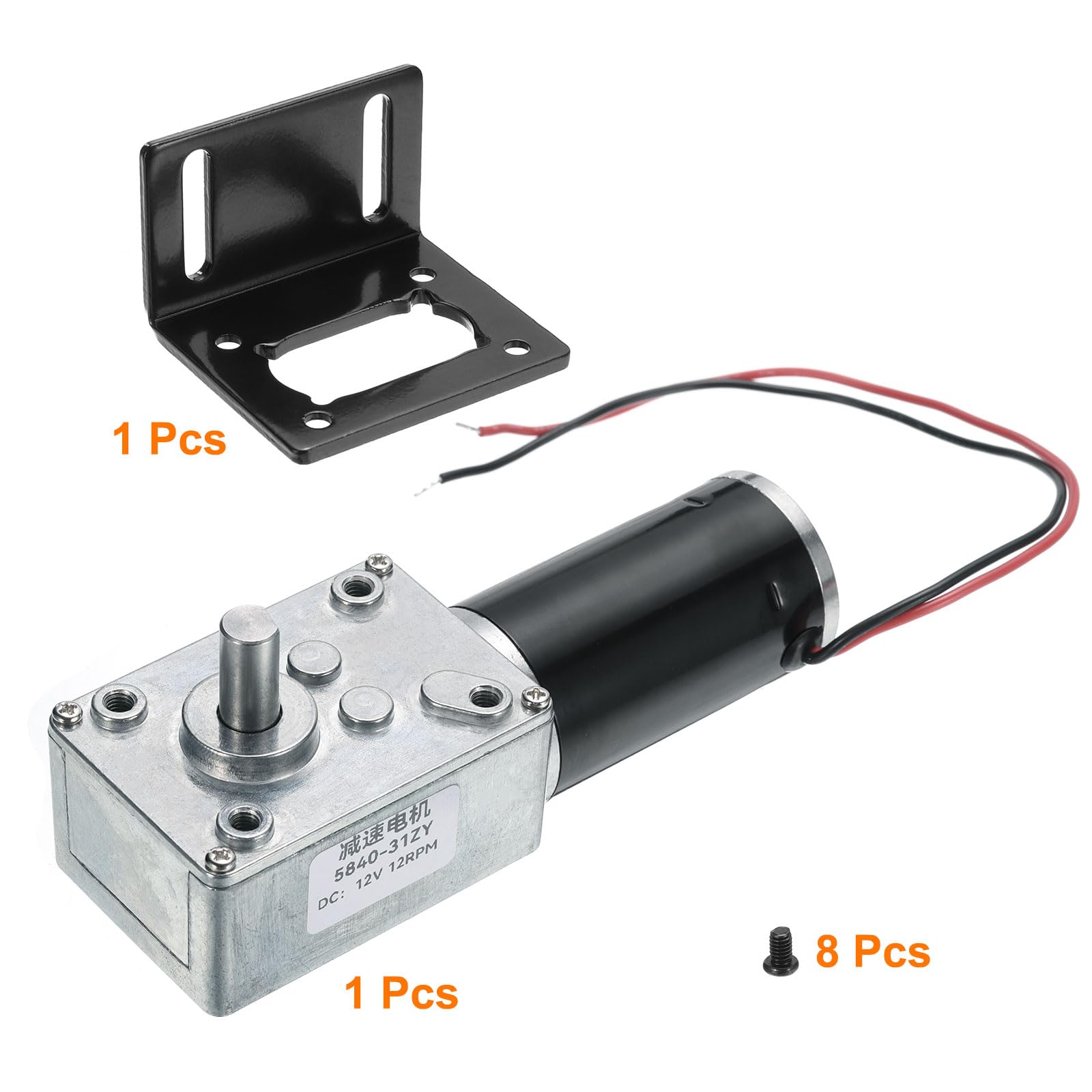

Model: 31ZY;Voltage: DC 12 (V);Speed: 12 (RPM);Rated Power: 1W;Max Torque: 100kg.cm;Cylindrical Handle Size: 30.75x56.89mm/1.21x2.24-inch (Dia*L);Motor Head Size: 58.16x39.44x26.67mm/2.29x1.55x1.05-inch (L*W*T);Screw Thread Size: M4; Screw Hole Distance: 36.5x24.5mm/1.44x0.96-inch (L*W);Shaft Size: 8x15.73mm/0.31x0.62-inch (Dia*L);Shaft D Type: 6.95x13.35mm/0.27x0.53-inch (W*L);Wire Length: 19.6cm/7.72-inch;In the package of: 1Pcs x Synchronous Motor (with Bracket plate*1pcs, screws*8pcs)

Are there any advantages of the product?

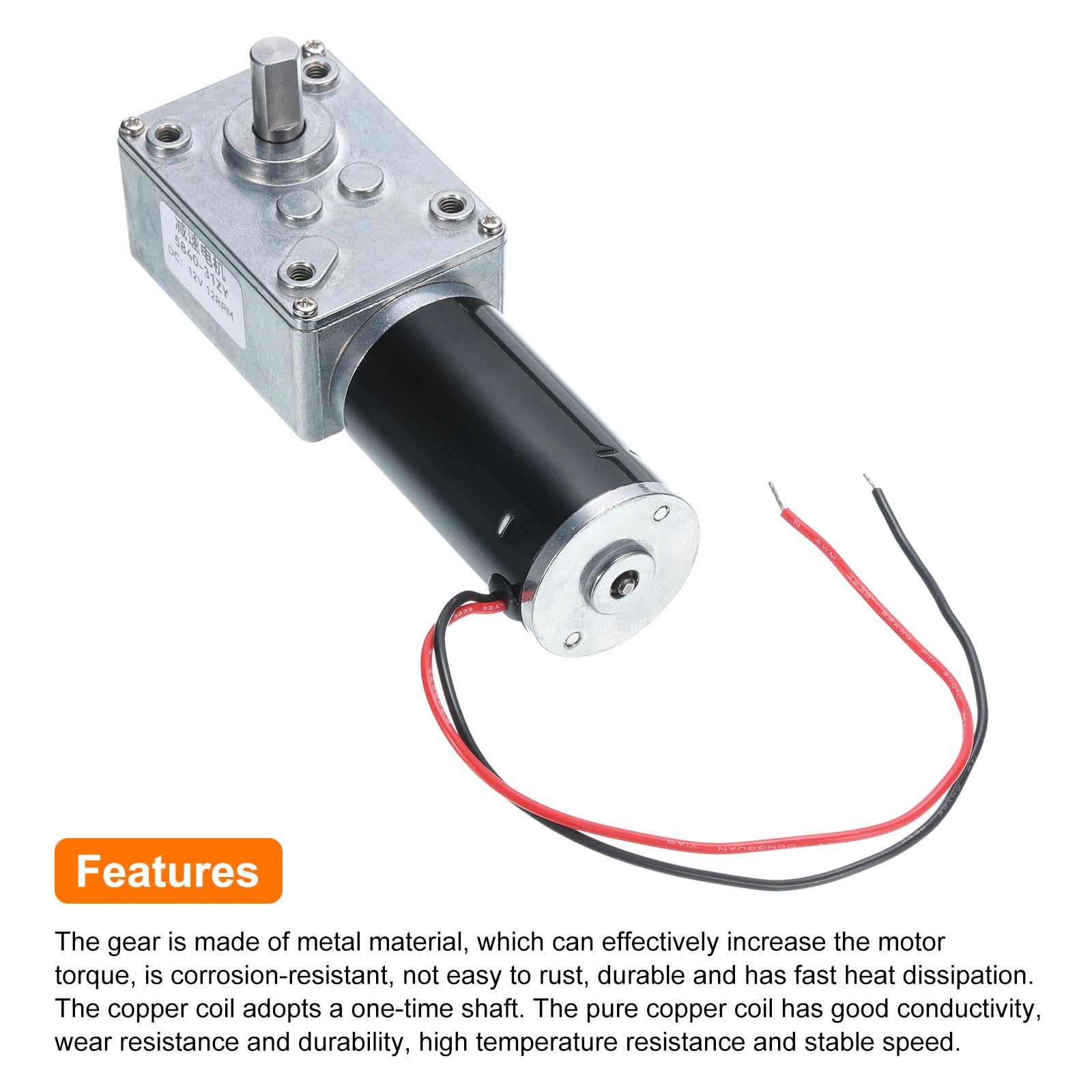

The gear is made of metal material, which can effectively increase the motor torque, is corrosion-resistant, not easy to rust, durable and has fast heat dissipation. The copper coil adopts a one-time shaft. The pure copper coil has good conductivity, wear resistance and durability, high temperature resistance and stable speed.

How to use it?
Connect the motor to an appropriate power source, ensuring compliance with the motor's rated voltage and frequency requirements. Install the plastic gear motor in the desired location. Press the start button or switch to start the motor.

What should I notice?
The motor cannot be overloaded or blocked, otherwise the motor and gears will be damaged. Please choose the appropriate specification (the reduction ratio determines the output torque) for use.

MECCANIXITY DC 12V High Torque Turbine Worm Geared Motor with 8mm Shaft 12RPM Geared Motor with Wire for Electric Fireplace
