Oumurs 1-1/4" Highway Engine Guard Crash Bar Protect Compatible with Harley Sportster 883 1200 Iron XL XR 48 72 2004-2021 for Softail Dyna Seventy Two Forty Eight Heavy Duty Upper Support Mustache

Quality looks good. Holes on bottom bracket could not get flush a gap of about one inch. Bolted on and is tight.Iron 1200cc 2019

Se ajusta perfecto

For the money this guard is fantastic......however, the installation is somewhat of a nightmare. The bolt holes do line up which is always good but spreading the bottom portion of the guard takes some effort. It is at least 3 inches too narrow so you will need some way of spreading it apart to attach it. I employed my son to push it over with his foot while I started the bolt. So in summary, I started the top bolt and one of the bottom bolts before pushing it over for the last bottom bolt. Also it appears I will need to grind a notch into the brake pedal to allow the brake to be fully engaged. No biggie. So I saved a couple hundred by not buying one from Harley and for me the adjustments are well worth it. One last thing I have forward controls with pegs on my 12 Heritage Classic so I can't speak to fitment with floor boards.

This bar is very robust. The mounting plates are welded on very well, and are 1/4” thick. Mounting wasn’t bad…I did have to put in the bottom bolts first and use the top engine mount bolts to “stretch” the bar to snug up against the frame.The bolts provided (1 1/4” chrome-plated socket heads) are not the right length for top or bottom. They are too long to use for the bottom bolts (they run into other frame elements), and they are too short to replace the top stock (1 1/2”) bolts, so I used 1 3/4” long (because of the additional thickness of the mounting plate) Grade 8 automotive bolts to connect to the top and 1” (you can also use 3/4” long) Grade 8 automotive bolts for the bottom bolts. All four bolts are 3/8”-16, available at Ace Hardware. If you check the installation instructions for the HD version of this bar, you will find that you should torque all four bolts to 25-35 ft. Lbs. I also used red Loctite.The footpads look like they are supposed to have something inserted through the holes in the tabs (see picture) to lock them in place, but the holes didn’t line up even with several attempts. Since these are too far away for my short legs anyway, I left them off. Planning to add foot pegs that I can mount lower.

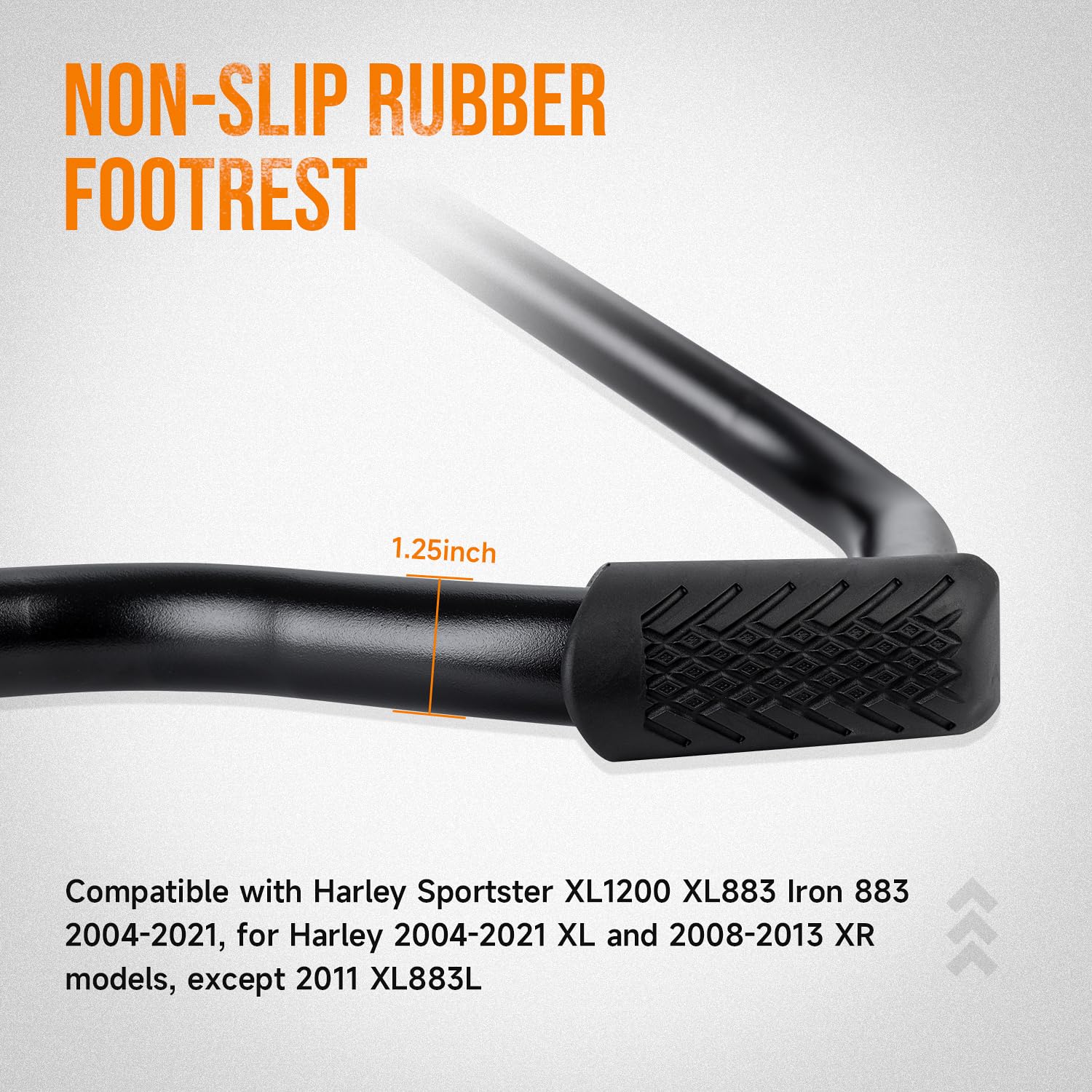

As the title states. Would give 5/5 stars except for the rubber foot pegs. There is a small metal pin that holds them on. Hard to insert and tears the rubber. Otherwise very happy with this.

This bar is what you need if you’re in the market for one. The rubber grips are impossible to get on 100%. Either leave them off or put them on best you can like I did. (There’s a metal rod that slides through rubber 8 holes to close the circle. I got 6 of the 8, it works).
