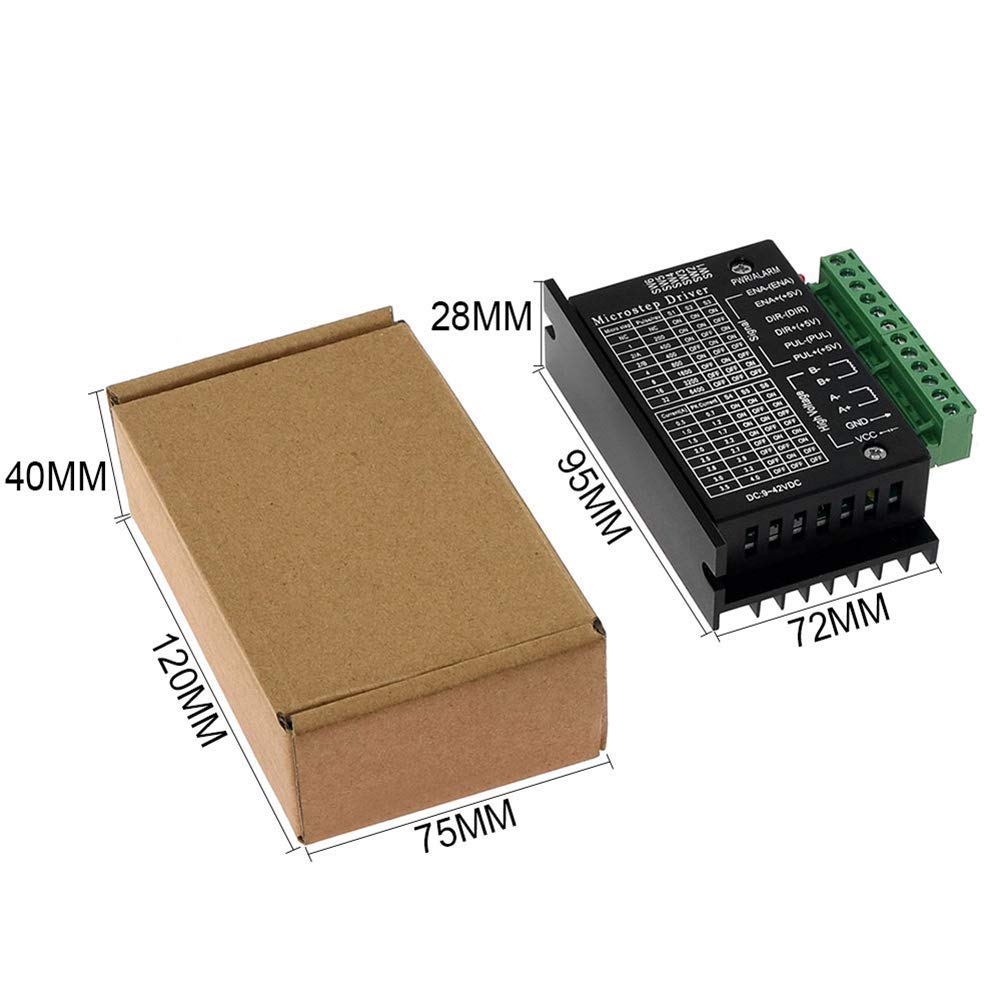

TwotreesTB6600 Stepper Motor Driver 4A 9-42V CNC Controller for 42 57 86 Stepper Motor Nema17 Single Axes Phase Hybrid Stepper Motor for CNC Arduino 3D Printer (3PCS)
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5Thumbnail 6Thumbnail 7

TwotreesTB6600 Stepper Motor Driver 4A 9-42V CNC Controller for 42 57 86 Stepper Motor Nema17 Single Axes Phase Hybrid Stepper Motor for CNC Arduino 3D Printer (3PCS)

4.5/5
Product ID: 369393077
Secure Transaction

Details

  • Brand
    Twotrees
  • Voltage
    42 Volts
  • Material
    Aluminum
  • Item Weight
    0.36 Kilograms
  • Manufacturer
    Twotrees

Description

  • Make sure that this fits by entering your model number.
  • 9V-42V DC power supply, H bridge bipolar constant phase flow drive.

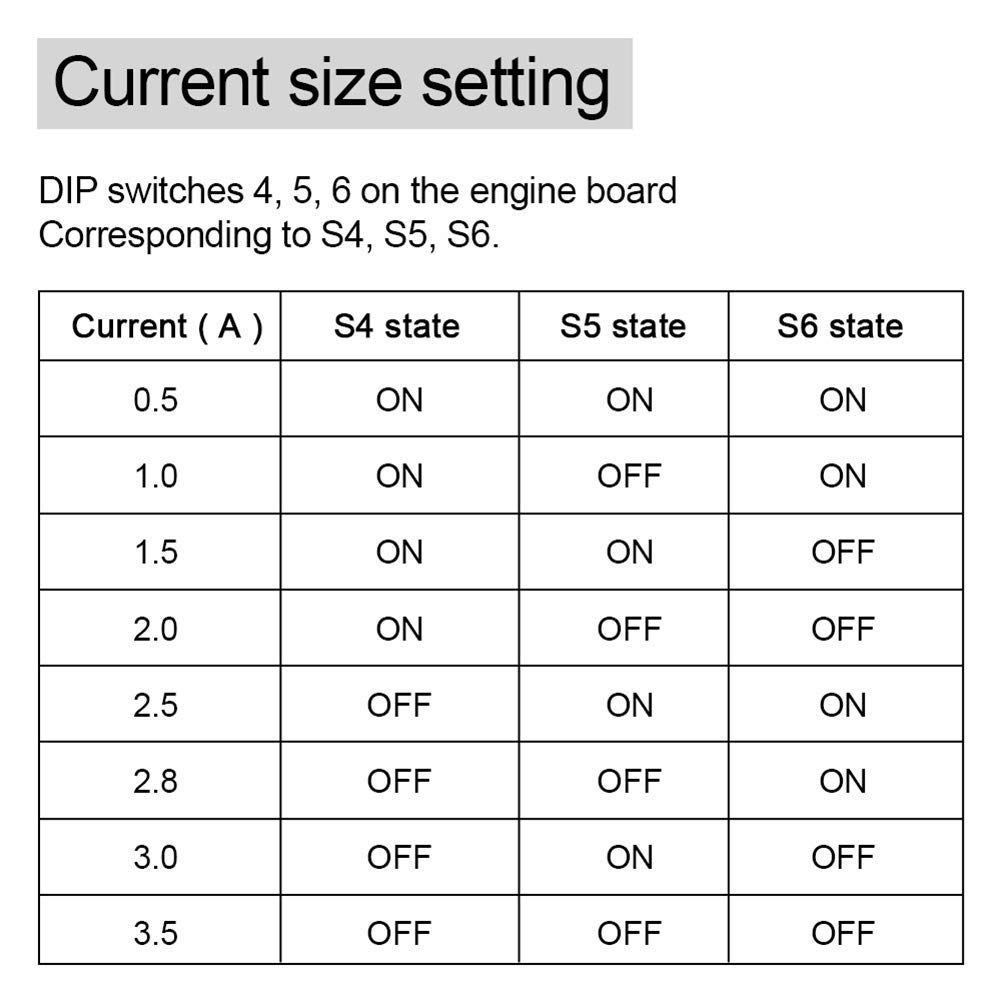

  • The maximum 4.0A of the eight kinds of output current
  • The largest 32 subdivision of the 6 models are optional.
  • Energy-saving semi-automatic current lock function, built-in temperature protection and over current protection.
  • Can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.

TwotreesTB6600 Stepper Motor Driver 4A 9-42V CNC Controller for 42 57 86 Stepper Motor Nema17 Single Axes Phase Hybrid Stepper Motor for CNC Arduino 3D Printer (3PCS)

Specifications

Voltage42 Volts
Item Weight0.36 Kilograms
Material TypeAluminum

Have a Question? See What Others Asked

will this unit control a nema 23 stepper motor?
Are these tb6600 or toshiba s109aftg? i just want to make sure prior to ordering...
What is the minimum voltage input require to set logic high, i have a 3.3v output from a breakout board, would that be sufficient?
What stepper chip is inside of the stepper driver module?

Reviews

4.5

All from verified purchases

C**C

OK

HAD 3 OF THESE BAD BOY'S EXPLODE ON ME! HOWEVER I WAS PUSHING SOME REAL POWER TO THEM.36 VDC ON SOME NEMA 34 1800 OZ MOTORS. THEY RAN FINE FOR ABOUT 5 MIN. THE KAPOW! DRIVER ACTUALLY POPPED. LEAVING A BOUNTYFUL CLOUD OF ODIFFEROUS IMMINATIONS OF OZONE LINGERING AROUND MY SHOP.THEY WORK GREAT ON THE SMALLER MOTORS THO.USE YOUR OWN JUDGEMENT.

K**R

Makes it very easy to interface steppers.

I used three of these to run an XY table for PCB drilling, driven by a Raspberry Pi Zero. They make interfacing to steppers much easier than building your own. The instructions on use can be a little confusing, but as far as I can tell, if you wire it wrong or put the switches to an invalid setting, there is no damage. And it is easy to find help online for settings and use.The picture is the prototype kluge that I built to design the system. Its first use is to make a PC board to make interface Mark 2, which will be much cleaner and without the scrambled wire nest. The three drivers are the devices with the green connector blocks.Recommended

N**N

These are not TB660 drivers!!! The onboard chip is a Toshiba S109AFTG.

Copy or not, these should not be advertised as a TB660.

E**E

Cnc build

Tried the grbl sheild for Arduino motor drivers and had problems. Printed my own pcb and connected these and work great. Easy to set the current and stepping. Work recommend every time. Used on my cnc I built.

T**M

Inexpensive Stepper motor driver,

As expected, 100% working unit. Easy to setup.
